A Methodological Framework for the Mechanical Rehabilitation of the Harley-Davidson FXST Softail

The Harley-Davidson FXST Softail represents a significant case study in the intersection of mechanical engineering and cultural artifact. Its maintenance and repair necessitate a systematic approach that transcends mere procedural execution, demanding an understanding of its unique kinematic and structural design principles. This article delineates a generalized methodological framework for addressing common mechanical failures in the FXST platform, with a specific focus on the primary drive system and the iconic suspension simulation mechanism. The objective is to provide a replicable protocol for restoration that emphasizes diagnostic rigor, component-level analysis, and the restoration of functional integrity.

1. Introduction: The FXST as a System

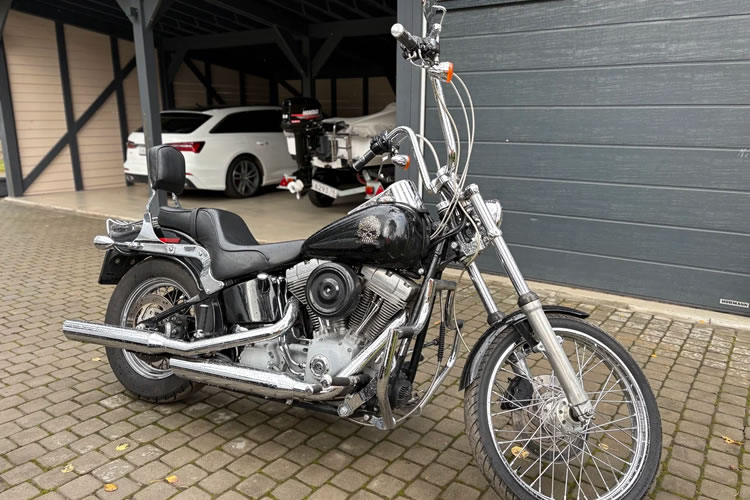

The subject of this analysis, the Harley-Davidson FXST Softail, is not merely a vehicle but a complex mechanical system. Its operational state is a function of the synergistic interaction of its subsystems: the powertrain (engine, primary drive, transmission), the chassis (frame, suspension, steering assembly), and the electrical network. A failure in any single component can induce cascading effects, degrading overall performance and reliability. Therefore, a repair intervention must be preceded by a comprehensive diagnostic phase to correctly identify the root cause of the malfunction, rather than merely addressing its symptomatic manifestations.

2. Diagnostic Protocol and Preliminary Analysis

Prior to any disassembly, a systematic diagnostic procedure is imperative.

• 2.1. Auditory Analysis: Anomalous acoustic emissions are critical data points. A high-frequency "clack" upon ignition engagement often indicates starter motor clutch wear. A persistent, low-frequency "knock" synchronous with engine RPM may suggest piston slap or connecting rod bearing failure, whereas a rhythmic "tap" could be attributed to valvetrain lash outside specified tolerances.
• 2.2. Vibration and Kinematic Observation: Excessive vibration, particularly at specific harmonic frequencies, can be traced to imbalances in the engine's rotating assembly or misalignment in the primary chain. Visual inspection of the motorcycle's behavior under load—noting any lateral oscillation or atypical rear-end squat—can reveal issues with the Softail's rigid-mounted, cantilevered suspension system.
• 2.3. Data Interrogation: The electrical system is diagnosed through the empirical measurement of voltage and current. A failure to initiate the starting sequence necessitates a sequential check of the battery's state of charge, the integrity of solenoid connections, and the resistance across the starter motor windings.

3. Intervention: A Focused Case Study on Primary Drive Tension Adjustment

A common failure mode in the FXST series involves the elongation and wear of the primary chain, leading to suboptimal power transfer and potential for catastrophic contact with the chain case. The following protocol outlines the corrective procedure.

• 3.1. System Isolation and Access: The powertrain must be in a zero-energy state. Following the disconnection of the negative battery terminal, the primary chain case cover is removed. This exposes the primary drive system: the engine sprocket, the chain, and the transmission clutch assembly.
• 3.2. Measurement and Assessment: Utilizing a calibrated force gauge, the chain deflection is measured at the midpoint between the sprockets. Deflection exceeding the manufacturer's specified tolerance (typically 20-25mm, or approximately 1 inch) confirms the hypothesis of excessive wear or incorrect tension.
• 3.3. The Adjustment Algorithm: The tension is modulated via an eccentric bearing located in the clutch hub. The securing lockring must be loosened. Rotating the eccentric mechanism alters the spatial relationship between the transmission and engine sprockets, thereby increasing or decreasing chain tension. This adjustment is iterative; each incremental rotation of the eccentric is followed by a re-measurement of deflection until the target value is achieved. The system is then secured by re-tightening the lockring to the specified torque value, a critical step to prevent spontaneous disassembly under vibrational loads.

4. Analysis of the Softail Suspension Subsystem

The FXST's defining characteristic is its "Softail" rear suspension, a four-bar linkage system designed to kinematically simulate the hardtail frames of historical motorcycles while providing a limited degree of controlled travel. Repair and maintenance of this system involve a structural analysis.

• 4.1. Component Degradation: The shock absorbers, concealed within the frame's structure, are subject to fluid degradation and seal failure over time. A loss of damping coefficient results in a pogo-stick effect, where the suspension oscillates rather than dampens road imperfections.
• 4.2. Linkage Integrity: The pivot points of the four-bar linkage are supported by bushings and bearings. These components are susceptible to wear, leading to the development of free play. This free play manifests as an audible "clunk" during acceleration or deceleration and compromises handling precision. Rehabilitation requires the disassembly of the linkage, the extraction of worn bearings via a hydraulic press or specialized pullers, and the installation of new components with appropriate lubrication.

5. Conclusion and Verification

The successful rehabilitation of a Harley-Davidson FXST Softail is contingent upon a methodical, evidence-based approach. By applying principles of mechanical diagnostics and systematic intervention, the technician can restore the system to its intended operational parameters. The final phase of any repair is verification. This involves a controlled test ride in a low-risk environment to monitor for the previously identified anomalies. The absence of the diagnostic symptoms, coupled with quantitative verification (e.g., correct chain tension, absence of electrical faults), confirms the efficacy of the intervention. This process transforms repair from a series of tasks into a repeatable scientific methodology, ensuring the longevity and performance of a classic piece of automotive engineering.
